Macloed Park Pavilion

Nurigong Steel installed steel walls and trusses for the construction of a new two-story sports pavilion.

Project details

July 2024

Macloed, Melbourne

Kennedy Construction

Walls, Trusses / Supply and Install

Project Introduction

The Macleod Park Pavilion is a two-storey building featuring a suspended concrete first-floor slab, with an integrated storage shed located at one end of the pavilion.

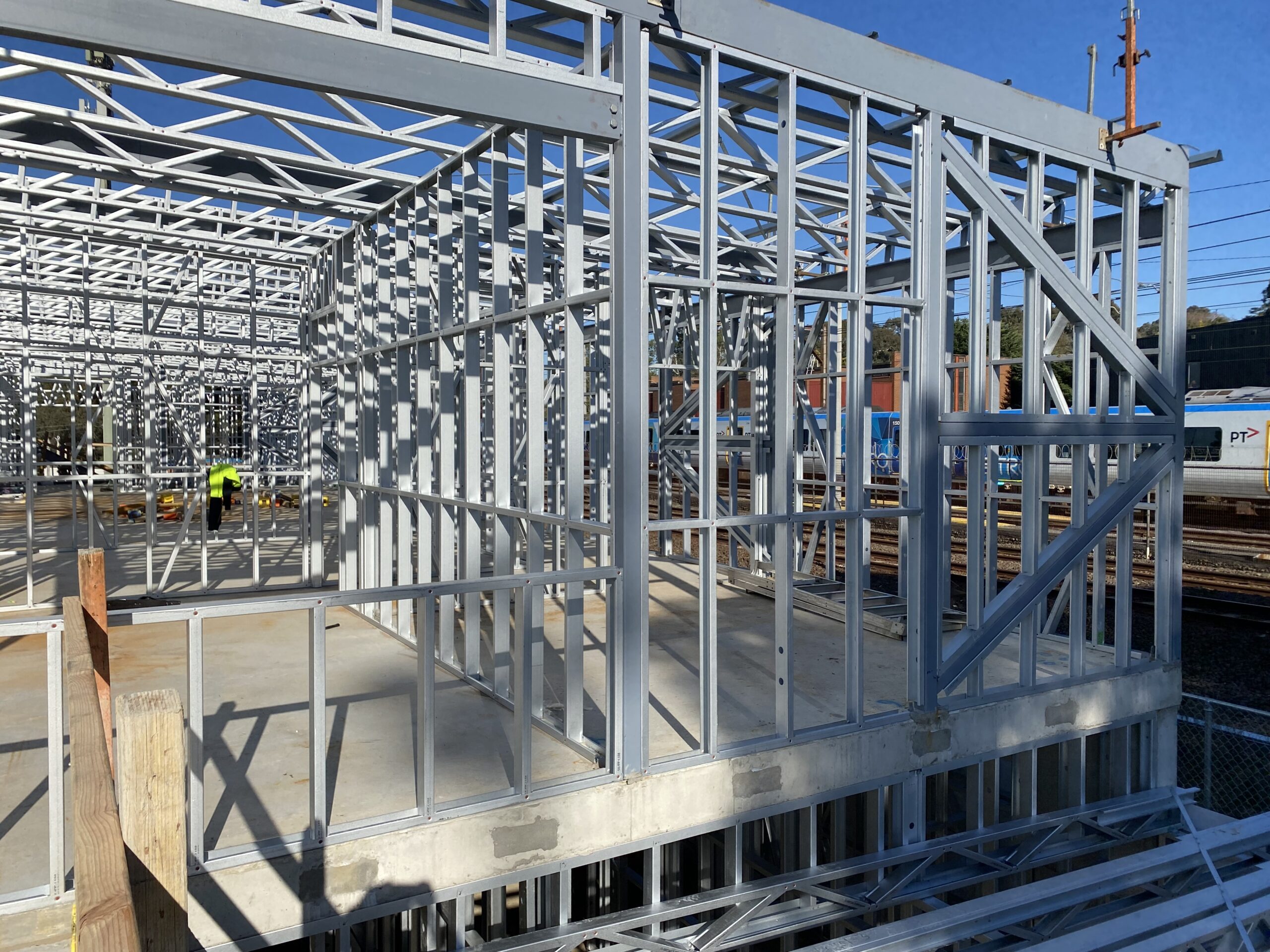

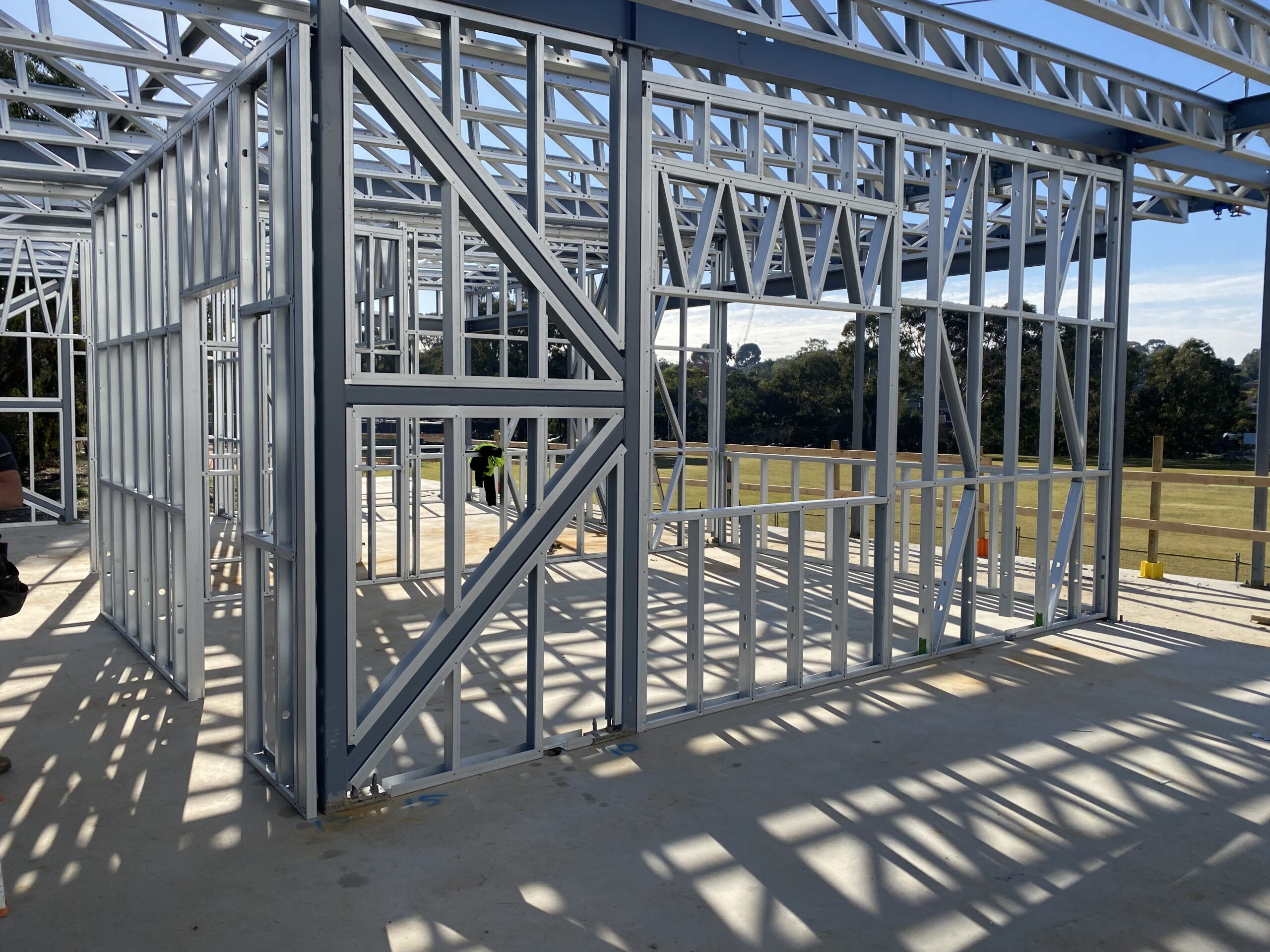

Our scope of works included the supply and installation of all external and internal wall framing, as well as the roof trusses. Both the external wall framing and roof trusses were integrated with the structural steelwork.

Wide Spanning Trusses

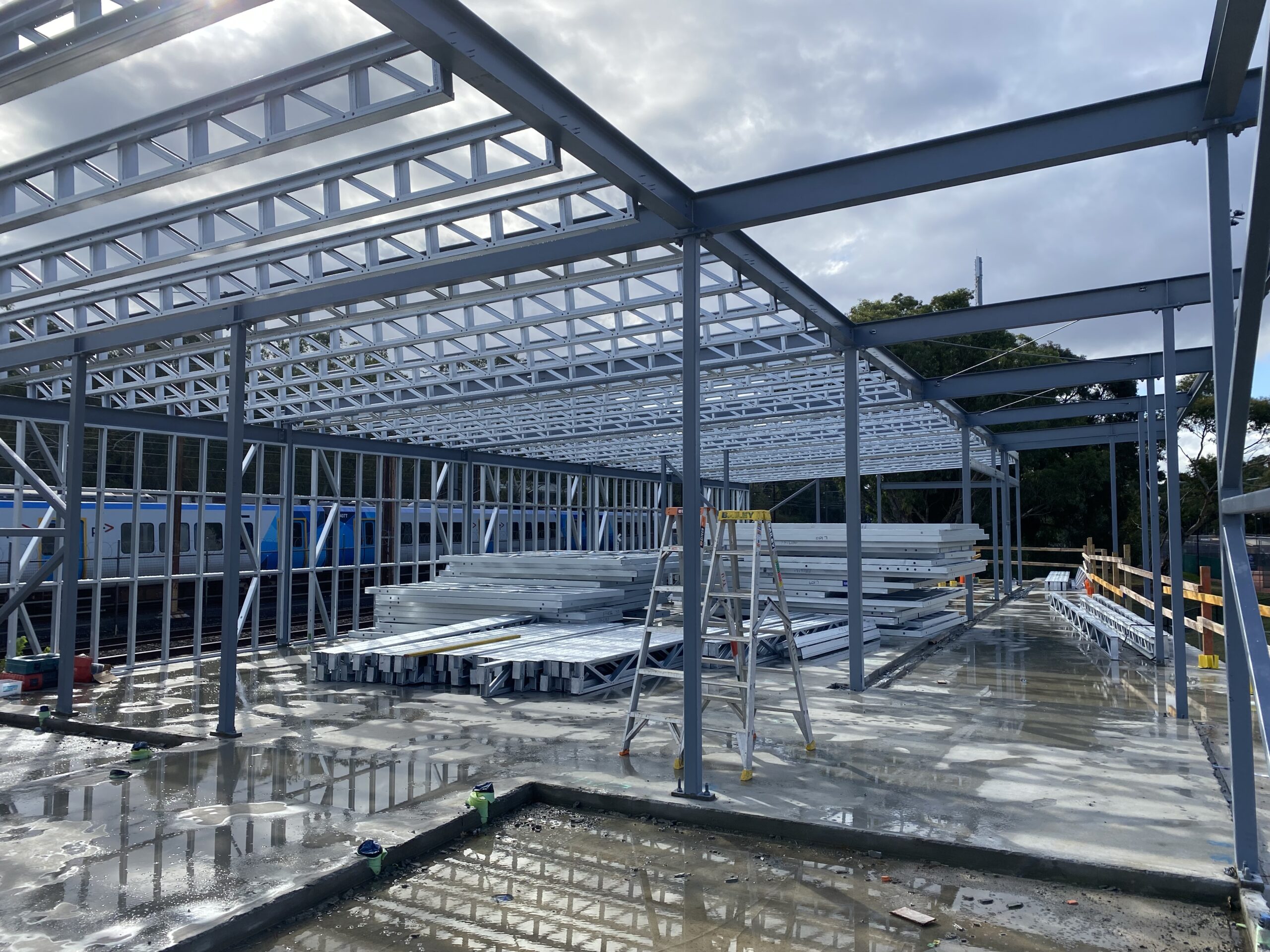

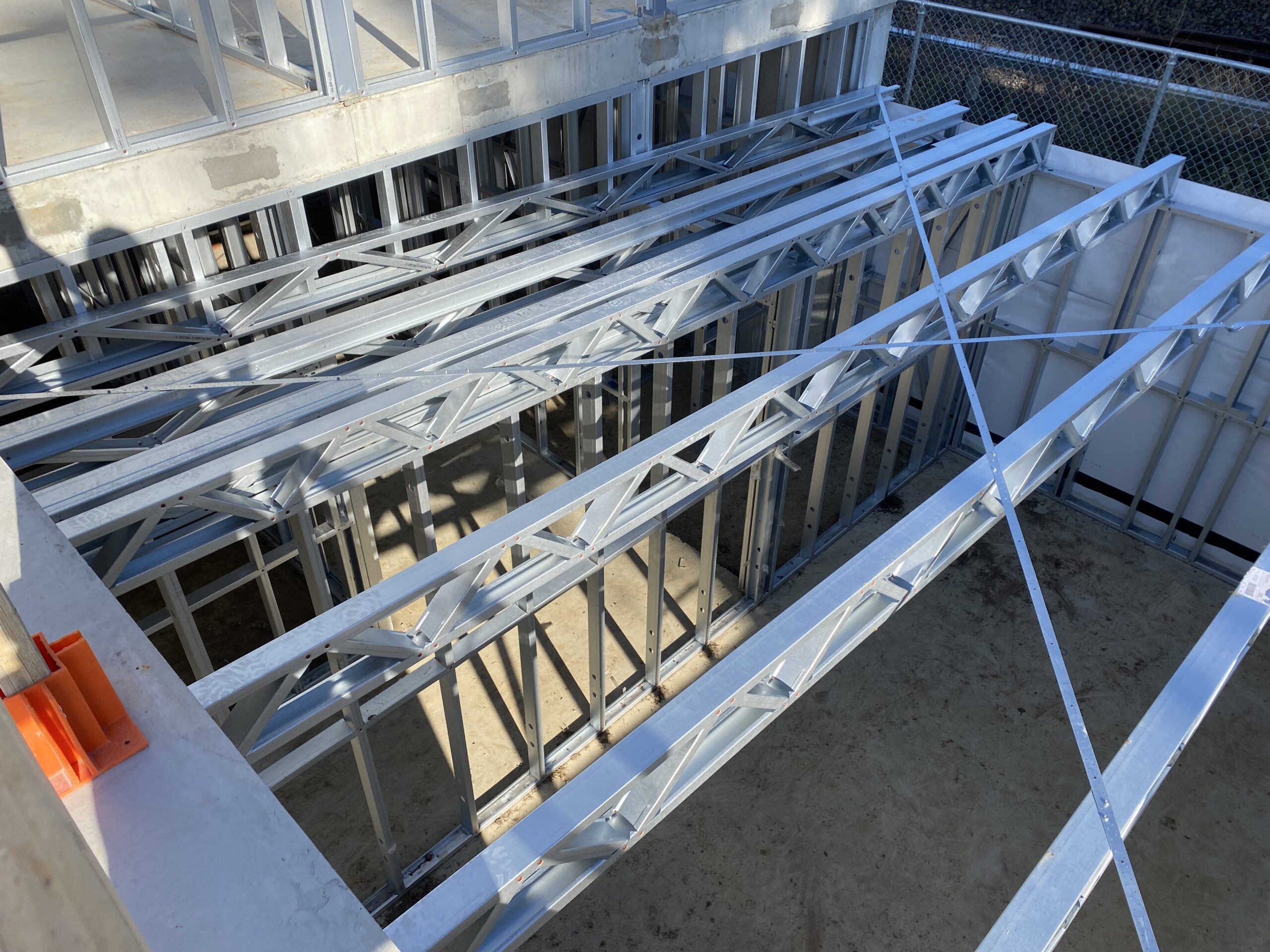

The upstairs function room features a large clear-span area, requiring long-span trusses to eliminate the need for intermediate columns. Strict height restrictions also had to be adhered to. To meet these requirements, we designed a flat, webbed truss system capable of spanning the full distance.

Seamless Integration

On projects where our products integrate with structural steel, we always undertake either a site check measure or fully coordinate our 3D design with the structural steel model. This process ensures accurate alignment, eliminates potential on-site issues, and guarantees that all elements fit together seamlessly.
